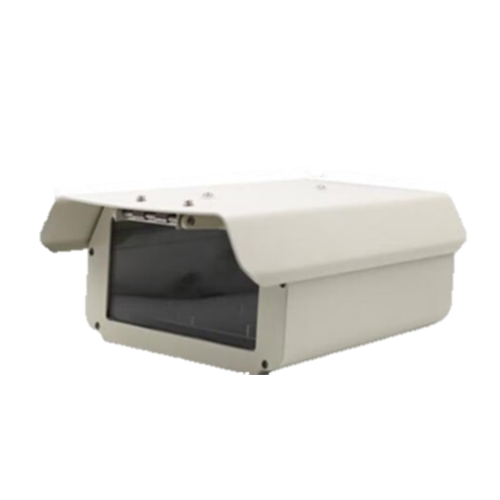

TL01 Lidar Series
Smart Vision for Safer Roads
The Lidar Series TL01 is developed by ITS’s partner Shanghai SEISYS Intelligent Systems Co., Ltd. is a high-performance laser radar solution designed for real-time traffic detection. It accurately identifies vehicles, pedestrians, and small objects, delivering dynamic data such as position, speed, acceleration, and direction.
With MEMS-based high-resolution scanning, structured data output, and robust IP67 protection, it is ideal for applications in traffic monitoring, smart signal control, and intelligent transportation systems.
Product Details
Precision in Motion — Next-Gen Lidar for Smarter Traffic Solutions
The Lidar Series TL01 is developed from ITS’s partner Shanghai SEISYS Intelligent Systems Co., Ltd. represents the new generation of high-performance laser radar technology. Designed for real-time detection of vehicles, pedestrians, and small objects, this system accurately captures contours and continuously outputs dynamic parameters such as position, direction, speed, acceleration, and steering angle. Ideal for applications including road traffic monitoring, signal control systems, and traffic information services, the Lidar Series empowers smarter, safer, and more efficient urban traffic management.
Key Features
- MEMS Micro-Mirror Scanning: Fast and precise laser beam scanning using MEMS technology for high resolution and rapid data acquisition.
- Equivalent 126-Line Scanning: Delivers detailed, dense point cloud data with high-precision ranging.
- Region of Interest (ROI) Capability: Enables customizable scanning density within specific areas for focused data collection.
- Optimized Control Algorithms: Advanced galvanometer control ensures uniform angle distribution and optimal scanning trajectory.
- Structured Data Output: Seamless integration with mainstream traffic signal controllers and data systems.
- Robust and Durable: IP67-rated protection and wide operating temperature range for reliable performance in harsh environments.
- Flexible Connectivity: Supports Ethernet, RS-485, and IO interfaces with low power consumption (typical 15W).
Technical Specifications
Parameter | Specification |
Ranging Method | Time of Flight (TOF) |
Detection Range | 0.5m to 200m (150m @ 10% NIST) |
Ranging Accuracy | ±3 cm @ 1 sigma |
Ranging Precision | ±5 cm |
Horizontal Field of View | 120° (-60° to 60°) |
Horizontal Resolution | 0.2° |
Vertical Field of View | 25° (-12.5° to 12.5°) |
Vertical Resolution | 0.2° |
Scanning Frequency | 10 Hz |
Echo Mode | Single echo (750,000 points/sec) |
Scanning Technology | MEMS Micro-mirror |
Region of Interest | Yes (up to 0.2° H × 0.1° V) |
Equivalent Scan Lines | 126 lines |
Communication Interfaces | Ethernet, RS-485, IO |
Power Supply | 24 V DC or PoE |
Power Consumption | 15 W (typical) |
Operating Temperature | -40℃ to 70℃ |
Storage Temperature | -40℃ to 80℃ |
Ingress Protection | IP67 |
Dimensions (L×W×H) | 310 mm × 230 mm × 120 mm |
Typical Applications
Road Traffic Monitoring
Monitor vehicle counts, speeds, and lane usage in real-time to support traffic management and urban mobility optimization.
Traffic Signal Control Integration
Enable adaptive traffic lights with dynamic vehicle and pedestrian detection to reduce congestion and waiting times.
Smart City Traffic Services
Provide high-fidelity traffic data for public transport management, route planning, and commuter information systems.
Parking Management
Detect vehicle presence and guide drivers in parking facilities to optimize space utilization and improve safety.
Autonomous Vehicle Testing
Offer precise environment mapping and object tracking in controlled test environments to aid autonomous driving research.
Public Safety & Emergency Response
Detect incidents and abnormal traffic conditions for rapid response and enhanced urban safety.
